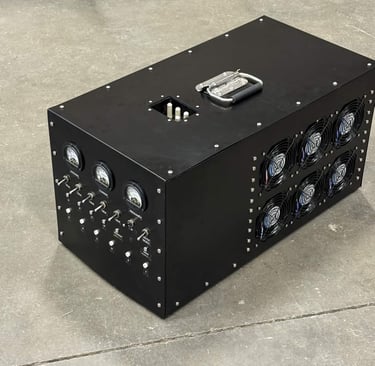

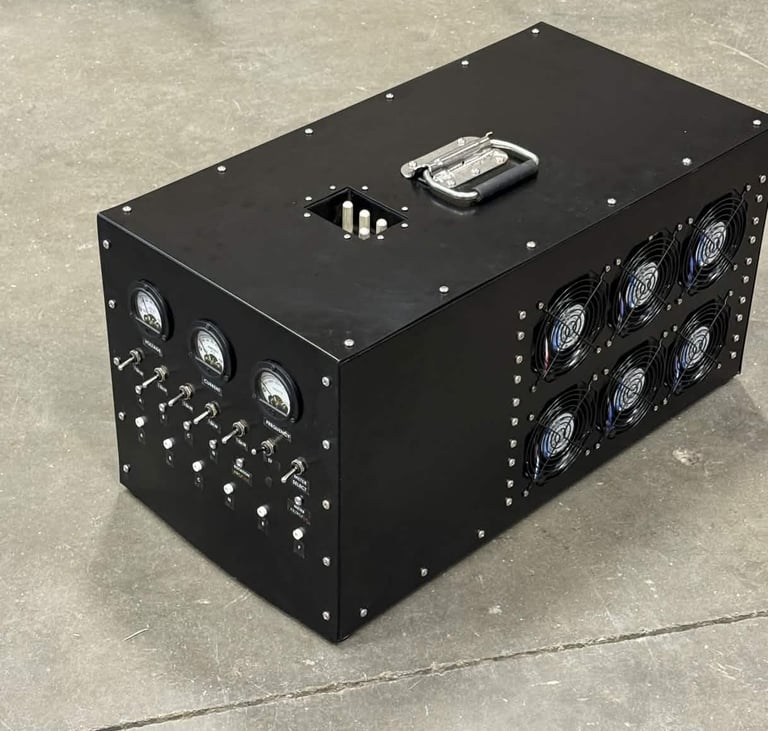

Premium 400Hz Loadbank, 75kW
When testing a 400Hz Solid State Converter or Generator, a loadbank is essential to fully load test the unit. Load testing can show faults that a simple “Voltage Only” test cannot. These faults can include loose connections, poor cooling capacity, or any number of smaller issues that high current can show. This loadbank has a total capacity of 75kW in 15kW load steps. Its small package can easily travel and be handled by a single person.
SERVICES PROVIDE
400Hz, 200VAC (L-L)
75kW Capacity at 15kW Load Steps
Integrated Aircraft Connector
Senses Phase Rotation and Phase Loss
EF Interlock Disable to Check Safety Circuits
Integrated Fans
Analog Meters for Voltage, Current, and Frequency Indication
Less than 50 Pounds
Greater than 80% US Content Complies with Buy American Act
Meter Select Switch to view all Phase Combinations on Meters
Custom Options Available Upon Request
Products

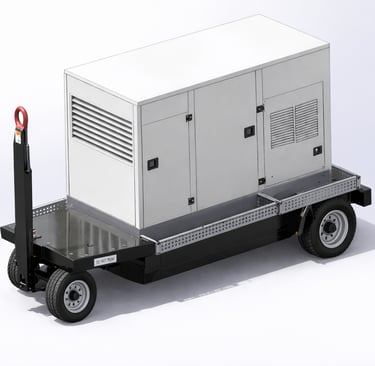

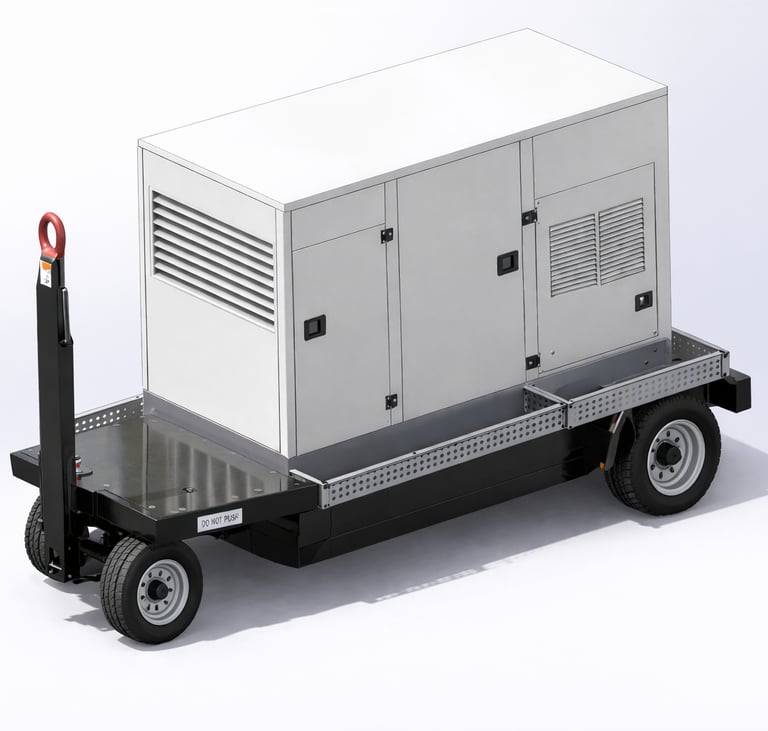

400Hz Diesel Generator
Reliable Aircraft Power—Anywhere You Need It
The Forge Heavy Industries 400Hz Diesel Generator is engineered to deliver dependable, high-quality power for aircraft ground operations in the most demanding environments. Designed for reliability, mobility, and ease of use, this unit provides consistent 400Hz power required for modern aviation systems—whether on the flight line, in remote locations, or at maintenance facilities.
Built with a rugged diesel-driven platform, this generator ensures continuous operation without reliance on external infrastructure. Its durable construction and weather-resistant enclosure make it ideal for both military and commercial applications where performance and uptime are critical.

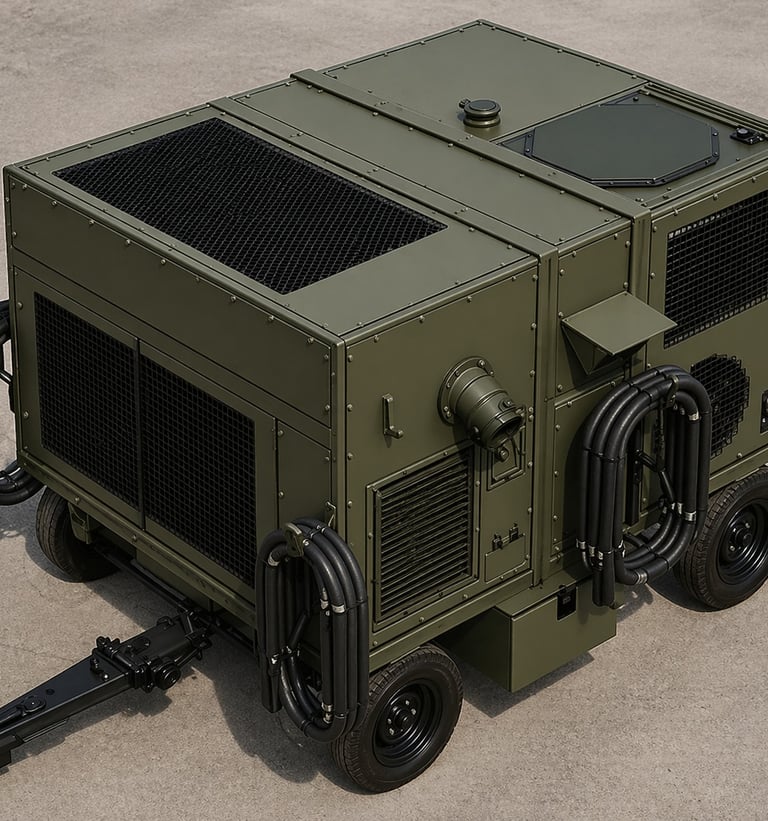

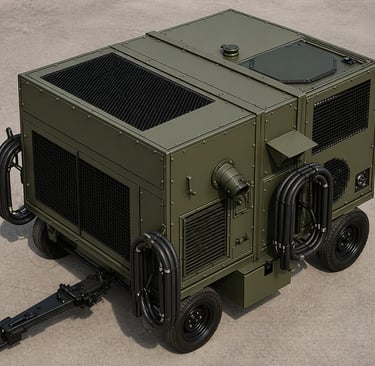

MAAC (Multiple Aircraft Air Conditioner)
The Forge Heavy Industries MAAC (Multiple Aircraft Air Conditioner) is a rugged, mobile ground support solution engineered to deliver reliable aircraft power in demanding operational environments. Designed for both commercial and military aviation applications, the MAAC provides dependable AC and DC power conversion capabilities in a compact, towable platform.Built with durability, serviceability, and operator efficiency in mind, the MAAC is ideal for flight line operations, maintenance facilities, hangars, and remote deployment environments. Its robust enclosure, integrated controls, and mobile design allow for rapid positioning and reliable performance wherever aircraft support is required.

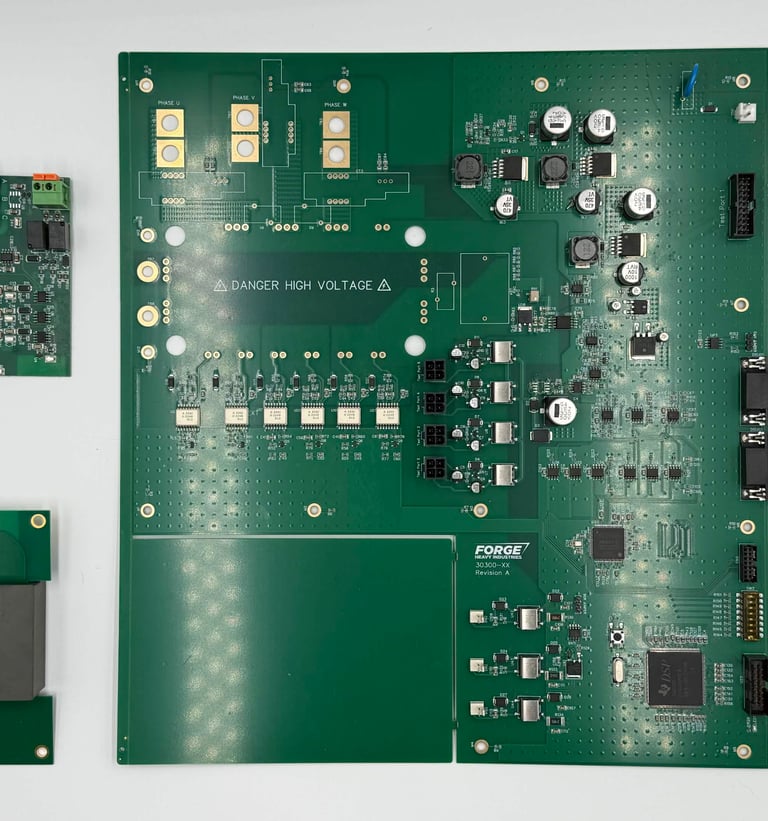

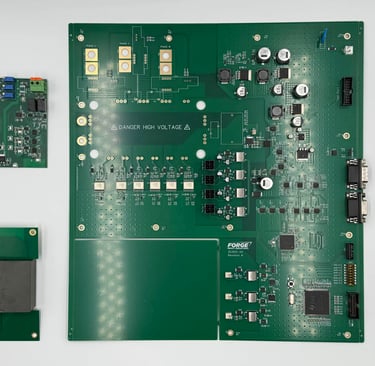

Specializing in Power Electronics for Ground Support and Controls
Design Services for any customer requirements on power electronics and industrial controls. Build and assembly of all parts of the design or manufacture yourself with our designs. Military hardening of COTS equipment, including shock, vibration, and EMI.
SPECIFICATIONS
Design Consultation of Power Electronics
Design of equipment and assemblies, both simple and complex
Manufacture of Designs
Full Design Handoff
Military Hardening of COTS equipment
Including but not limited to:
Shipboard Shock
Shipboard Vibration
Shipboard EMI
Airborne Shock
Airborne Vibration
Airborne EMI

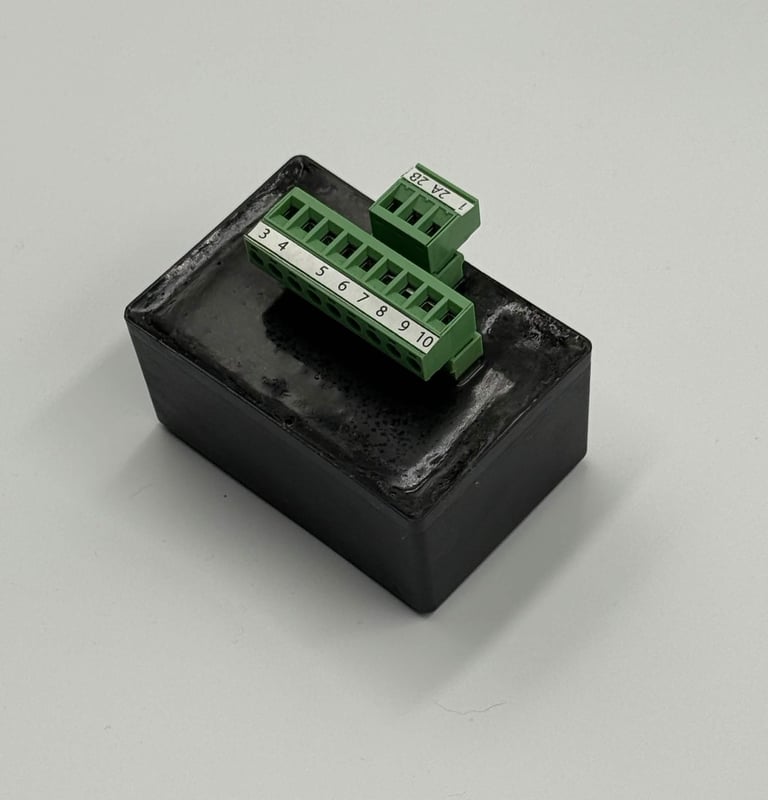

Independent Aircraft Interlock—Simple, Reliable, and Non-Intrusive
The Forge Heavy Industries Split “F” Relay provides a reliable aircraft interlock solution by utilizing the Split “F” pin from the aircraft power connector—without requiring any direct interface with the aircraft systems. Designed for simplicity and dependability, this relay ensures safe power engagement by confirming proper cable connection before allowing output.
By leveraging the existing Split “F” circuit within the aircraft cable head, the system enables an effective interlock mechanism that operates independently of aircraft wiring or onboard controls. This approach reduces complexity, eliminates the need for aircraft modifications, and enhances overall system safety.
Aircraft-Independent Interlock
Utilizes the Split “F” pin for verification—no aircraft interface required
Enhanced Safety
Prevents power output unless proper cable connection is established
Simple Integration
Easily incorporated into new or existing ground power systems
Reliable Operation
Robust relay design for consistent performance in demanding environments
Reduced Complexity
Eliminates the need for additional aircraft-side wiring or communication
